SS 410 Stainless Steel Channels Manufacturer
Precision Alloy is a renowned manufacturer and exporter of SS 410 stainless steel channels, offering durable, hardenable, and wear-resistant profiles for use in structural, industrial, and high-temperature environments. Manufactured to specifications including ASTM A276, ASME SA276, and EN 10088, SS 410 channels are a preferred choice for applications that demand strength, machinability, and moderate corrosion resistance.

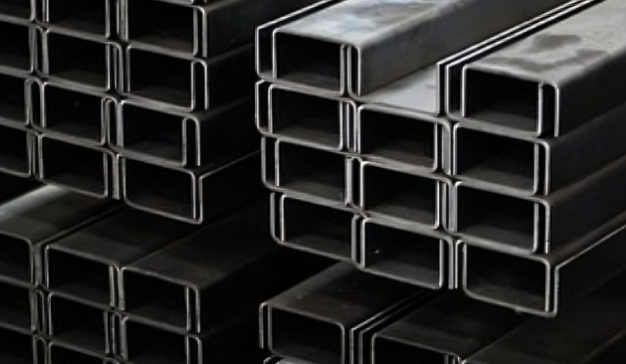

What are SS 410 Stainless Steel Channels?
SS 410 stainless steel channels are martensitic stainless structural profiles known for their excellent hardness, mechanical strength, and oxidation resistance up to 650°C. They can be heat-treated for added strength and are ideal for tooling, machinery frames, and load-bearing applications that require both toughness and formability.
Available in U-Channel, C-Channel, and custom-fabricated sections, SS 410 is widely used in abrasive and semi-corrosive industrial settings.
SS 410 Stainless Steel Channels Specifications
| Property | Specification |
|---|---|
| Material Grade | SS 410 |
| UNS Number | S41000 |
| EN / WNR | 1.4006 / X12Cr13 |
| Channel Types | U-Channel, C-Channel, Custom Fabricated |
| Sizes | 25 mm – 150 mm web height (custom widths available) |
| Thickness | 3 mm – 10 mm |
| Length | 3m, 6m, or cut-to-size |
| Surface Finishes | HRAP, Pickled, No. 1, Polished |
| Standards | ASTM A276, ASME SA276, EN 10088, DIN 1.4006 |
Chemical Composition – SS 410 Stainless Steel Channels
| Element | % Composition |
|---|---|
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 11.5 – 13.5 |
| Phosphorus (P) | 0.040 max |
| Sulfur (S) | 0.030 max |
Mechanical Properties – SS 410 Stainless Steel
| Property | Annealed | Hardened & Tempered |
|---|---|---|
| Tensile Strength | 500 – 700 MPa | 700 – 850 MPa |
| Yield Strength | 275 MPa min | 450 – 600 MPa |
| Elongation | 20% min | 15% min |
| Hardness (HB) | Up to 250 | Up to 500 |
| Service Temp. | Up to 650°C | Up to 675°C (dry conditions) |
Applications of SS 410 Stainless Steel
SS 410 Stainless Steel is widely used in structural, fabrication, and sanitary applications:
Construction & Infrastructure
Automotive & Transportation
Marine & Offshore
Aerospace & Defence
Oil & Gas Industry
Manufacturing & Industrial Machinery
Why Choose Precision Alloy?
- ISO 9001:2015 Certified Manufacturer
- Wide Range of Stainless Steel Bar Shapes & Sizes in Stock
- Surface Finish Options for Decorative or Industrial Use
- Customized Machining & Fast Lead Times
- Global Delivery with Competitive Pricing
