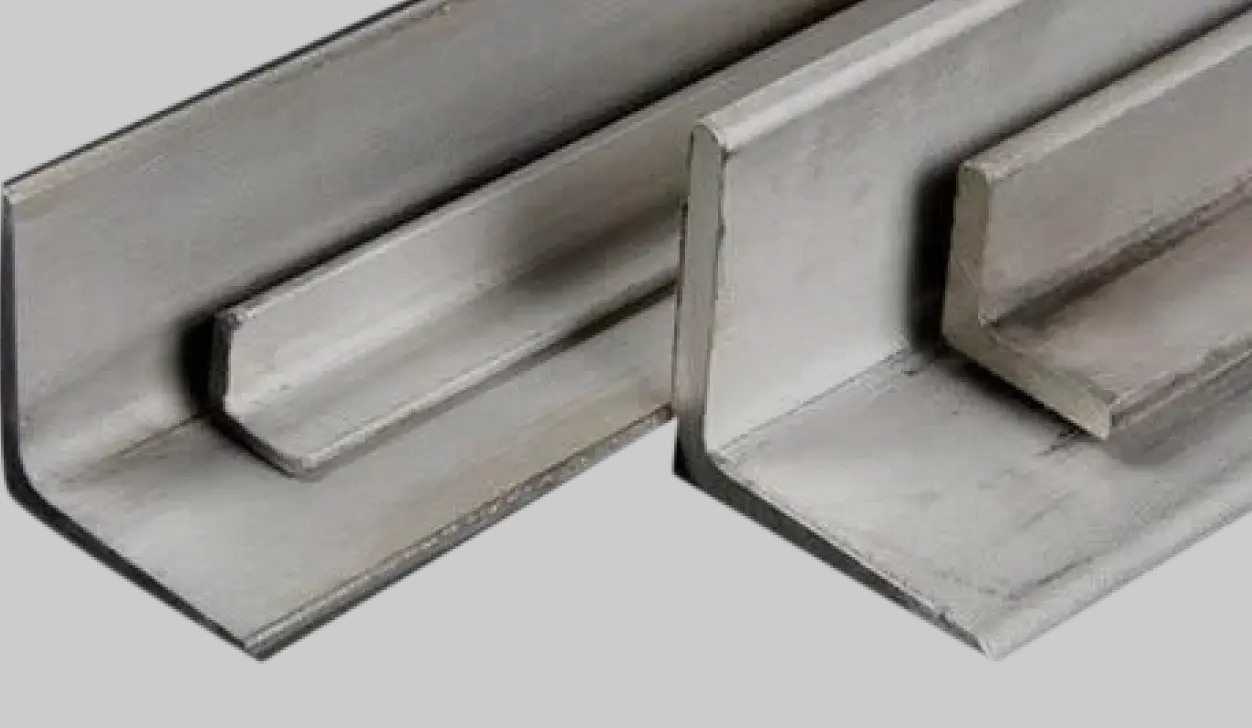

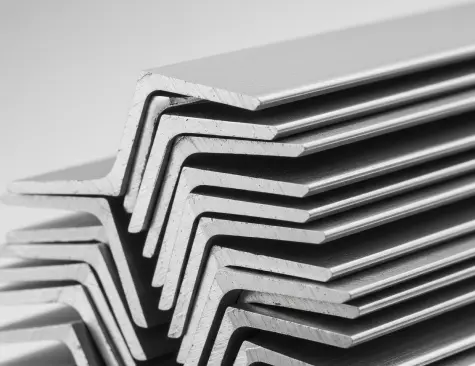

What Are SS 316 & SS 316L Stainless Steel Angles?
SS 316 stainless steel angles are molybdenum-bearing austenitic stainless profiles that provide excellent resistance to pitting, crevice corrosion, and chloride attack, particularly in marine and chemical environments.
SS 316L is the low-carbon variant of SS 316, offering the same corrosion resistance with enhanced weldability and reduced risk of intergranular corrosion post-welding.
Both grades are available in equal and unequal leg angles, and are ideal for structural reinforcement, bracing, frames, and supports in corrosive or high-purity applications.
SS 316 / SS 316L Stainless Steel Angles Specifications
| Property | Specification |
|---|---|
| Material Grades | SS 316 / SS 316L |
| UNS Numbers | S31600 / S31603 |
| EN / WNR | 1.4401 / 1.4404 |
| Sizes | 20×20 mm to 150×150 mm (Equal & Unequal) |
| Thickness | 3 mm – 12 mm |
| Length | 3m, 6m, or custom cut-to-size |
| Surface Finishes | Hot Rolled, Pickled, 2B, No. 1, No. 4 (Brushed), Polished |
| Standards | ASTM A276, ASTM A484, ASME SA276, EN 10056 |
Types of SS 316 / SS 316L Stainless Steel Angles
Chemical Composition of SS 316 / SS 316L Stainless Steel Angles
| Element | SS 316 | SS 316L |
|---|---|---|
| Carbon (C) | 0.08 max | 0.03 max |
| Manganese (Mn) | 2.00 max | 2.00 max |
| Silicon (Si) | 1.00 max | 1.00 max |
| Chromium (Cr) | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.00 – 3.00 | 2.00 – 3.00 |
| Phosphorus (P) | 0.045 max | 0.045 max |
| Sulfur (S) | 0.030 max | 0.030 max |
Mechanical Properties of SS 316 / SS 316L Stainless Steel Angles
| Property | SS 316 | SS 316L |
|---|---|---|
| Tensile Strength | 515 – 750 MPa | 485 – 700 MPa |
| Yield Strength | 205 MPa min | 170 MPa min |
| Elongation | 40% min | 40% min |
| Hardness (HRB) | ≤ 95 | ≤ 95 |
Applications of SS 316 / SS 316L Stainless Steel Angles
These stainless angles are essential in projects requiring strength, corrosion resistance, and aesthetic appearance:
Construction & Infrastructure
Automotive & Transportation
Marine & Offshore
Aerospace & Defence
Oil & Gas Industry
Manufacturing & Industrial Machinery
Why Choose Precision Alloy?
- ISO 9001:2015 Certified Manufacturer
- Wide Range of Stainless Steel Bar Shapes & Sizes in Stock
- Surface Finish Options for Decorative or Industrial Use
- Customized Machining & Fast Lead Times
- Global Delivery with Competitive Pricing
